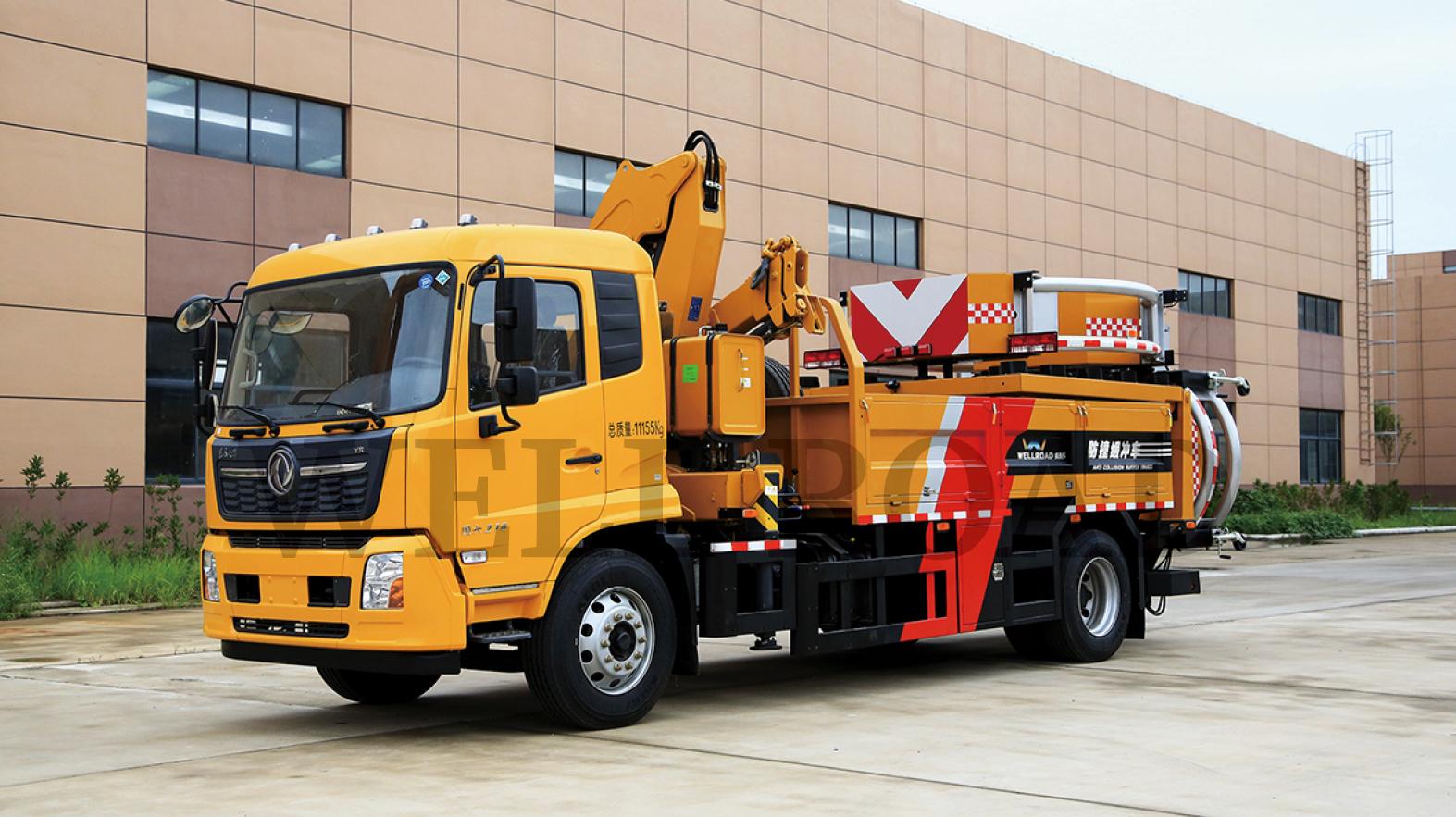

WRD5180TFZ Heavy-Duty Anti-Collision Buffer Truck

Application | Features


Features of products

Configuration advantages and features

Two-stage collision energy absorbing device: The outer shell of the anti-collision buffer device is made of special lightweight materials, filled with plastic energy-absorbing materials in the middle, and the connecting body is a two-stage eight curved tubes. When a collision occurs, the two-stage curved tube will absorb the impact energy through force deformation (the curved tube bends inward) at first. When the energy exceeds the deformation rate of the curved tube, the plastic deformation of the anti-collision cushion will continue to absorb the impact. The remaining energy of, to maximize the absorption of collision energy;

Easy-to-operate loading device: the main structure of the boom frame, through the 90-degree slewing mechanism to complete the two-stage boom telescopic, lifting and folding; through the four-point support for the body legs, further enhance the stability of on-site parking; By automatically flipping the cushion at 90 degrees, the preparation of the job site and the transfer after the job can be completed quickly;

Suitable for high-grade roads: The heavy-duty vehicle chassis is equipped with a double pole super anti-collision buffer structure and a truck-mounted crane, which is more suitable for the daily management of highway, local high-grade roads and urban expressways.

High-brightness LED screen traffic guidance: The three-lane lift LCD display that can be controlled by remote control can display left, right and no-passing signs respectively, actively guiding passing vehicles safely, minimizing the impact of construction on road traffic, and effectively preventing traffic accidents.

Unique anti-corrosion and anti-rust performance: The whole truck adopts high-grade electrophoretic coating or compound electroplating treatment, with excellent anti-corrosion and anti-rust performance, without fear of various outdoor environments.

Products parameters



Anti-collision buffer device


2 group 2385X785X2700mm

Cushion Weight


Buffer Level


Buffer Structure Length


Overall dimensions (LxWxH)


Truck chassis parameters

Dongfeng DFH1180BX1V chassis, Chinese VI Emission standard

 Total weight


 Equipment weight


 Max. Speed





154 kw

Overall dimensions (LxWxH)
